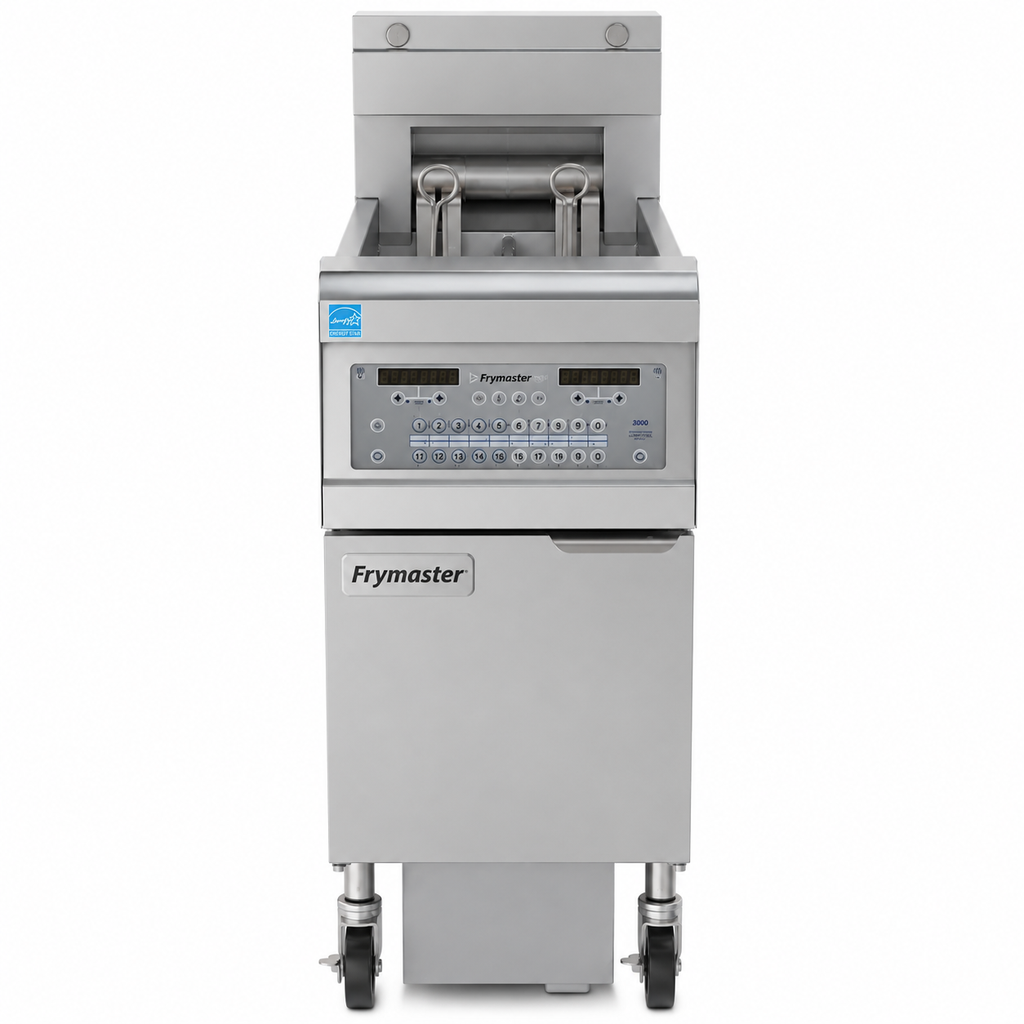

Frymaster OCF30E
The Frymaster OCF30E series is designed for catering businesses that want to combine maximum performance with significantly lower oil consumption.
Thanks to the compact 30 lbs (15 litres) fryer tanks, the OCF30E uses up to 40% less oil than traditional 50 lbs fryers, while the built-in manual filtration can extend the oil life by up to 92%.
The combination of automatic oil top-up (ATO), precise temperature control, and intelligent controllers ensures consistent frying results, lower operating costs, and a more efficient kitchen.
General
|
Feature |
Specification |
|---|---|
|
Type |
Professional electric fryer |
|
Series |
OCF30E Oil Conserving |
|
Application |
Restaurants, QSR, high-volume kitchens |
|
Usage |
Intensive professional use |
|
Execution |
Freestanding |
|
Certification |
ENERGY STAR® |
|
Filtration |
Built-in manual filter system |
|
Oil saving |
Up to 40% less oil |
|
Extension of oil life |
Up to 92% |
Capacity & performance
|
Feature |
Specification |
|---|---|
|
Oil capacity per tank |
30 lbs (± 15 litres) |
|
Split pot capacity |
16 lbs (± 8 litres) |
|
Bowl surface full pot |
330 × 356 × 95 mm |
|
Bowl surface split pot |
140 × 356 × 95 mm |
|
Type of pot |
Open pot |
|
Production |
High capacity with lower oil consumption |
Construction & execution
|
Feature |
Specification |
|---|---|
|
Housing |
Fully stainless steel |
|
Frying pot |
Independent stainless steel open pots |
|
Heating elements |
Patented flat, foldable heating elements |
|
Cold zone |
Deep cold zone |
|
Temperature measurement |
Central RTD probe |
|
Safety |
Drain Safety Switch |
|
Automatic Top Off |
Yes (not on FPEL114C) |
|
Oil drain |
Integrated |
Technology & performance
|
Feature |
Specification |
|---|---|
|
Heating |
Low watt density for high efficiency |
|
Energy efficiency |
ENERGY STAR® |
|
Heat transfer |
High efficiency |
|
Automatic Top Off (ATO) |
Yes* |
|
Manual filtration |
Built-in |
|
Oil lifespan |
Up to 92% longer |
|
Temperature control |
RTD probe with fast response |
* Not available on model FPEL114C.
Operation & options
|
Feature |
Specification |
|---|---|
|
Standard controller |
Frymaster 3000 |
|
Optional controller |
3010 |
|
Programmable keys |
20 |
|
Automatic load compensation |
Yes |
|
Split pot |
Optional |
|
Basket lifts |
Optional |
|
Spreader cabinet |
Optional |
|
Bulk Oil system |
Optional (Fresh Fill & Disposal) |
|
Semi-solid shortening kit |
Optional |
Electrical data
|
Feature |
Specification |
|---|---|
|
Power per full tub |
14 kW |
|
Power per split pot |
7 kW |
|
Connection voltage |
208-240V / 380-415V |
|
3-phase connection |
Yes |
|
1-phase connection |
Depending on voltage |
Filtration system
|
Feature |
Specification |
|---|---|
|
Type |
Built-in manual filter system |
|
Automatic Top Off |
Yes (except FPEL114C) |
|
Bulk Oil System |
Optional |
|
Fresh Fill |
Optional |
|
Waste Oil Disposal |
Optional |
|
Result |
Less oil consumption and lower operating costs |
Installation
|
Feature |
Specification |
|---|---|
|
Free space front |
914 mm |
|
Free space side and rear |
152 mm |
|
Ventilation |
According to NFPA 96 |
|
Mounting |
Not suitable for curb mounting |
Available versions
|
Model |
Number of tubs |
Width |
|---|---|---|
|
FPEL114C |
1 |
397 mm |
|
FPEL214CA |
2 |
794 mm |
|
FPEL314CA |
3 |
1.192 mm |
Extra information
|
Feature |
Specification |
|---|---|
|
Oil consumption |
Up to 40% lower than traditional 50 lbs fryers |
|
Energy saving |
Lower energy consumption due to high efficiency |
|
Oil management |
High ratio of fresh/used oil |
|
Maintenance |
Foldable heating elements for easy cleaning |
-
