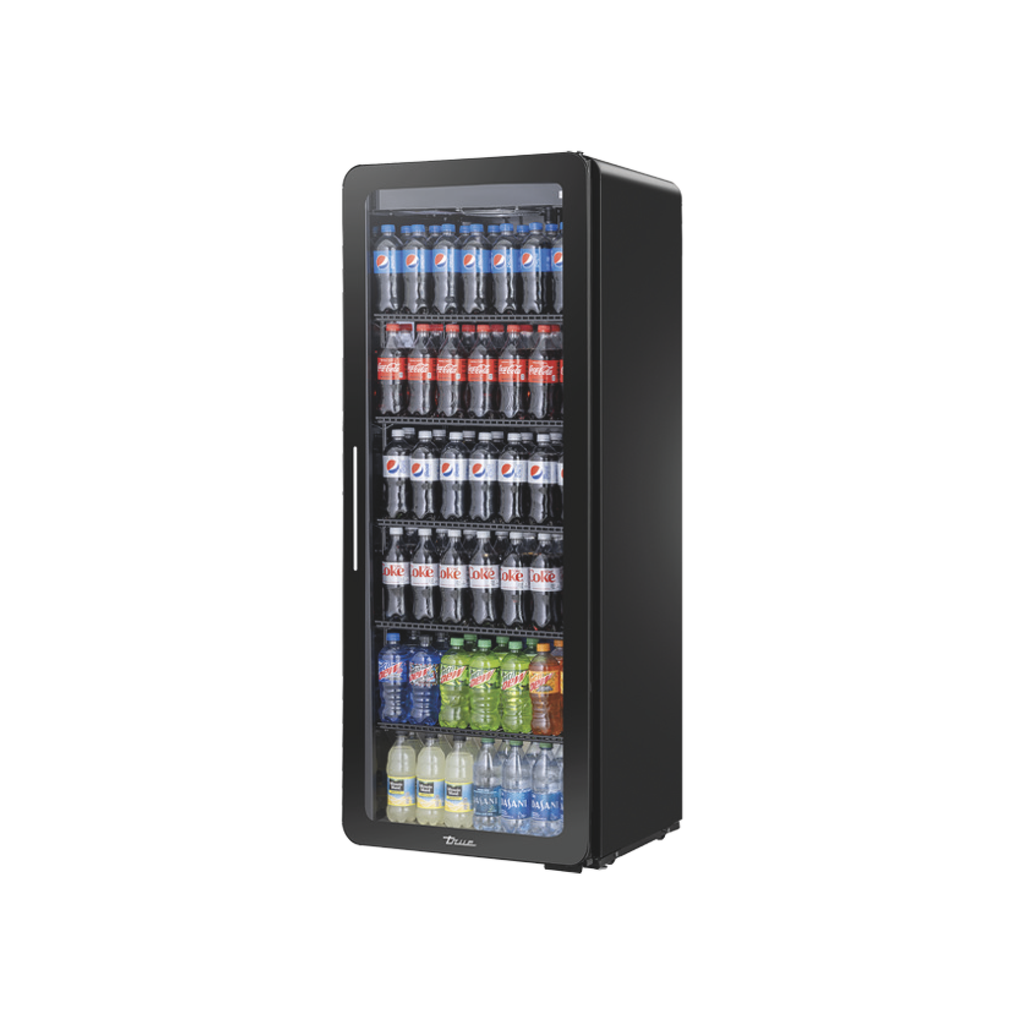

True Glass Door Refrigerator - CVM-13-HC~EGC01
The True CVM-13-HC~EGC01 is a professional glass door display refrigerator designed for the attractive presentation of chilled drinks and convenience products.
Thanks to the double insulated glass door, energy-efficient LED lighting, and forced air cooling, products remain perfectly chilled and optimally visible.
With its larger capacity and extra shelf, the CVM-13 offers more storage capacity while maintaining a compact footprint.
General
|
Feature |
Specification |
|---|---|
|
Type |
Glass door display refrigerator |
|
Series |
Contemporary Visual Merchandiser |
|
Application |
Drinks, snacks, and convenience products |
|
Use |
Professional |
|
Execution |
Freestanding |
|
Number of doors |
1 glass swing door |
|
Door swing direction |
Right standard, left optional |
Capacity & performance
|
Feature |
Specification |
|---|---|
|
Gross capacity |
345 litres |
|
Net capacity |
- |
|
Display area |
0.73 m² |
|
Temperature range |
0.5°C to 3.3°C |
|
Climate class |
5 |
|
Application |
Chilled drinks and packaged products |
Construction & execution
|
Feature |
Specification |
|---|---|
|
Outside |
Black powder-coated steel |
|
Inside |
Black aluminium with stainless steel base |
|
Door |
Double thermally insulated safety glass |
|
Lighting |
LED |
|
Shelves |
5 adjustable shelves |
|
Shelf dimensions |
519 × 445 mm |
|
Lock |
Not available |
|
Feet |
Adjustable feet |
|
Wheels |
Integrated rollers |
Technology & performance
|
Feature |
Specification |
|---|---|
|
Cooling system |
Forced air cooling |
|
Defrosting |
Automatic |
|
Refrigerant |
R290 |
|
Air inlet |
Front |
|
Ventilation |
Back |
|
Required clearance |
26 mm back, no side clearance |
Electrical data
|
Feature |
Specification |
|---|---|
|
Connection |
220-240V / 1F / 50-60Hz |
|
Power |
230 W |
|
Current consumption |
1.1 A |
|
Energy class |
C |
|
Energy efficiency index |
28 |
|
Energy consumption |
1.27 kWh / 24 hours |
|
Energy consumption |
465 kWh / year |
Dimensions & weight
|
Feature |
Specification |
|---|---|
|
External dimensions (W × D × H) |
630 × 581 × 1617 mm |
|
Internal height |
1442 mm |
|
Packaging dimensions |
737 × 699 × 1740 mm |
|
Net weight |
95 kg |
|
Gross weight |
106 kg |
|
Cable length |
3.05 m |
Additional information
|
Feature |
Specification |
|---|---|
|
Certification |
Tested according to EN ISO 22044:2022 |
|
Application |
Professional beverage cooling |
|
Lighting |
Energy-efficient LED lighting |
|
Refrigerant |
Natural R290 |
|
Advantage |
Larger storage capacity without extra width |
|
Advantage |
Front ventilation allows placement against side walls |
