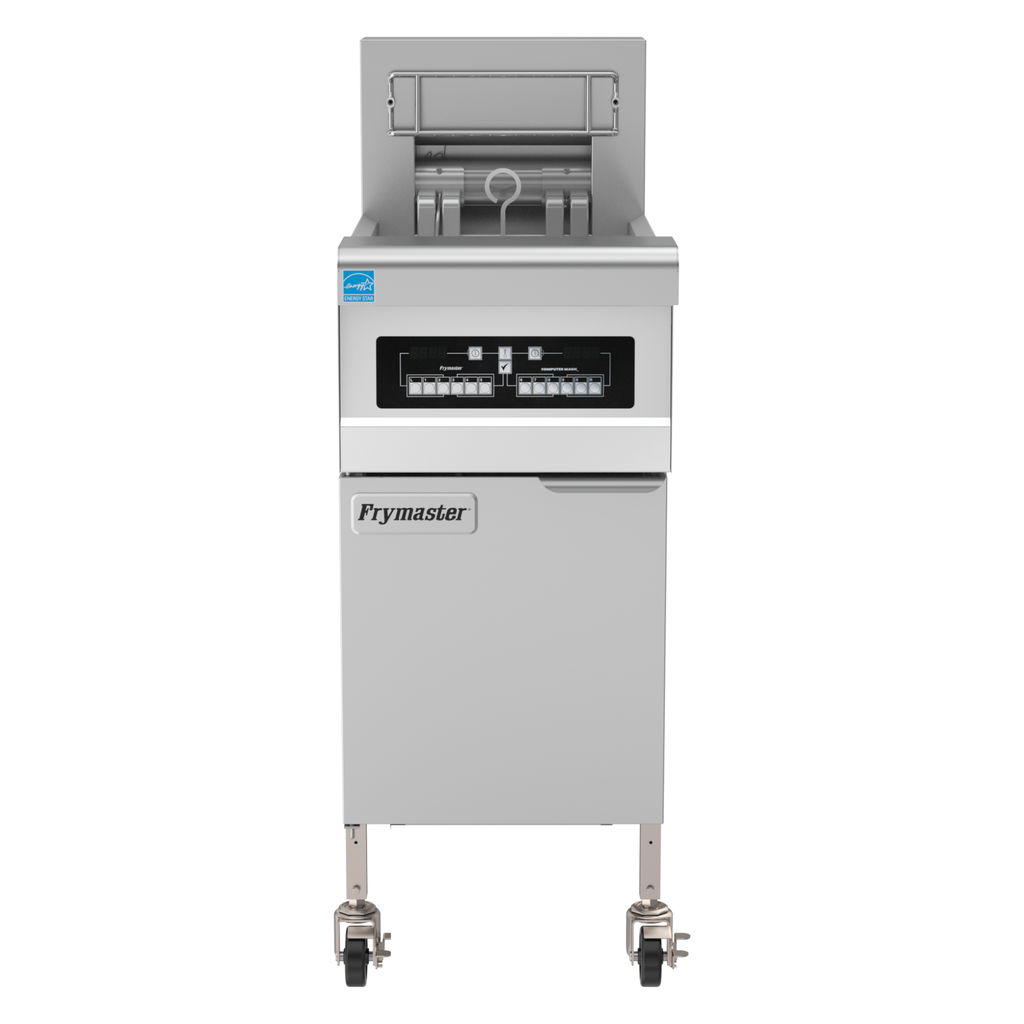

Frymaster RE
The Frymaster RE14 and RE17 are professional high-efficiency electric fryers designed for intensive use in restaurants, fast food chains, and other professional kitchens. Thanks to the patented flat heating elements, the deep cold zone, and the open tank design, both models deliver excellent frying results, lower energy consumption, and a longer lifespan of the frying oil.
With an ASTM efficiency of over 83%, ENERGY STAR® certification and an integrated manual filtration system, the RE14 and RE17 are among the most efficient electric fryers on the market.
General
|
Type |
Professional electric fryer |
|
Models |
RE14 & RE17 |
|
Application |
Restaurants, QSR, high-volume kitchens |
|
Usage |
Intensive professional use |
|
Execution |
Freestanding |
|
Certification |
ENERGY STAR® |
|
Filtration |
Built-in manual filtration system |
|
Warranty |
Lifetime warranty on the fryer tank (subject to conditions)* |
Capacity & performance
|
Oil capacity per tank |
50 lbs (± 25 litres) |
|
Split pot |
25 lbs (± 12.5 litres) |
|
Baking surface per full tank |
356 × 394 × 95 mm |
|
Baking surface per split pot |
171 × 394 × 95 mm |
|
Type of tank |
Open tank |
|
Production |
Continuous high capacity |
Construction & execution
|
Housing |
Stainless steel |
|
Frying tank |
Stainless steel open tank |
|
Heating elements |
Patented flat, foldable heating elements |
|
Cold zone |
Deep cold zone |
|
Temperature measurement |
RTD probe (±1°C) |
|
Ignition |
Electric |
|
Safety |
Drain Safety Switch |
|
Oil drain |
Rear oil flush |
|
Drain valve (full tank) |
1¼” ball valve |
|
Drain valve (split pot) |
1” ball valve |
Technology & performance
|
Heating |
Low watt density, flat heating elements |
|
Heat transfer |
High efficiency |
|
Energy efficiency |
ASTM >83% |
|
Certification |
ENERGY STAR® |
|
Melt Cycle |
Automatic |
|
Boil-Out programme |
Yes |
|
Oil lifespan |
Extended due to deep cold zone |
|
Working environment |
Less heat emission to the kitchen |
Operation & options
|
Standard controller |
CM3.5 |
|
Split pot |
Optional |
|
Basket lifts |
Optional |
|
Spreader cabinet |
Optional |
|
External oil drainage |
Optional (front or rear) |
Electrical data
|
Property |
RE14 |
RE17 |
|---|---|---|
|
Power per full vat |
14 kW |
17 kW |
|
Power per split pot |
7 kW |
8.5 kW |
|
Connection voltage |
208-240V / 380-415V |
208-240V / 380-415V |
|
3-phase connection |
Yes |
Yes |
|
1-phase available |
Depending on voltage |
Depending on voltage |
Optional filtration system
|
Property |
Specification |
|---|---|
|
Type |
Built-in manual filtration system |
|
Filter pump |
Integrated |
|
Advantage |
Extends the life of the frying oil |
|
Result |
Less oil consumption and lower operating costs |
Installation
|
Free space front |
914 mm |
|
Free space side and rear |
152 mm |
|
Ventilation |
Install according to NFPA 96 |
|
Assembly |
Not suitable for curb mounting |
Available versions
|
Model |
Number of vats |
Width |
|---|---|---|
|
FPRE114 / FPRE117 |
1 |
397 mm |
|
FPRE214 / FPRE217 |
2 |
794 mm |
|
FPRE314 / FPRE317 |
3 |
1.194 mm |
|
FPRE414 / FPRE417 |
4 |
1.590 mm |
Standard included
|
Frying baskets |
2 per tub |
|
Basket holders |
Yes |
|
Basket racks |
Yes |
|
Power cord |
Depending on model |
|
Manual |
Yes |
-
